EKM Metering
EKM Omnimeter Pulse v4
CT1-3, L1-L3/N, dual RS-485, three pulse inputs, two pulse outputs, and two control outputs.
3.94 x 2.62 in plan · 19 x 13 in wall diagram
Designed from real field plans
SubmeterStudio
Create measured floor plans, design every wall, route utilities, and turn placed components into an order-ready supply schedule.
1/2 in snapping Plan and wall views Supply ledger
Create floor plansMeasured walls, openings, fixtures, dimensions, and named rooms.
Create wall designsPlace equipment, route pipe and wire, and control each wall face.
Build component schedulesTrack panel breakers, meters, cabinets, appliances, and installed status.
01 · BROWN STREET PROJECT
One project. Two precise views.

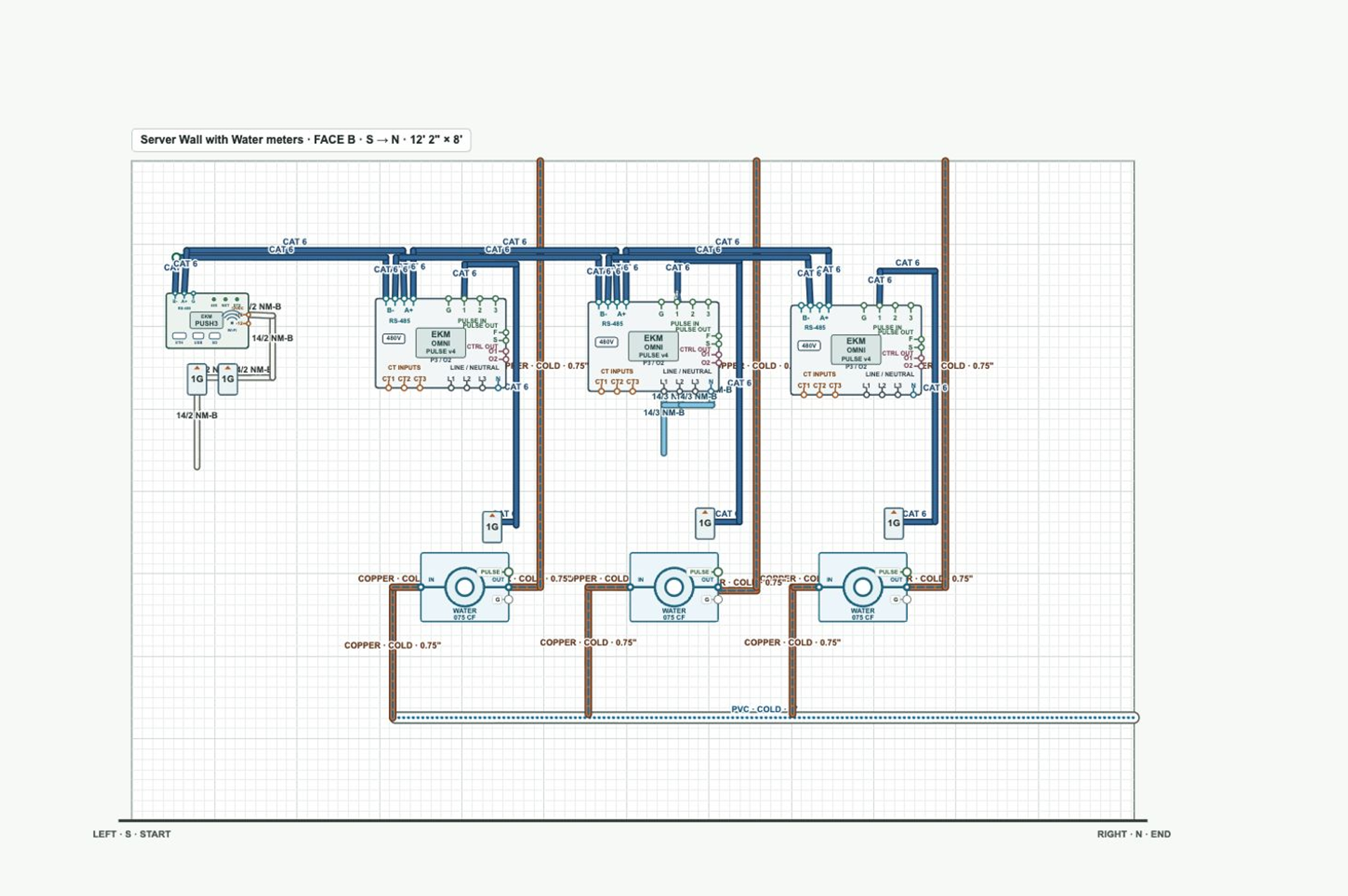

Explore a real SubmeterStudio project, from its measured floor plan to the detailed Server Wall equipment and utility routing.
Measured geometry
Type exact wall, door, rough-opening, and component dimensions in inches.
Connected systems
Lock wire and pipe endpoints to terminals so routed systems move with equipment.
Order-ready data
Start a project Every placed component can flow into a sectioned supply list with installed tracking.
02 · PRINT FORMATS
Compare print access Print the same plan at field-ready sizes.
Compare real Brown Street wall-design exports across Letter, 11 x 17, 18 x 24, and 24 x 36 formats. Free accounts can buy a saved PDF once, while subscriptions include plan-specific print access.
Actual exported sheet
Paper sizeSelect a format to update the preview

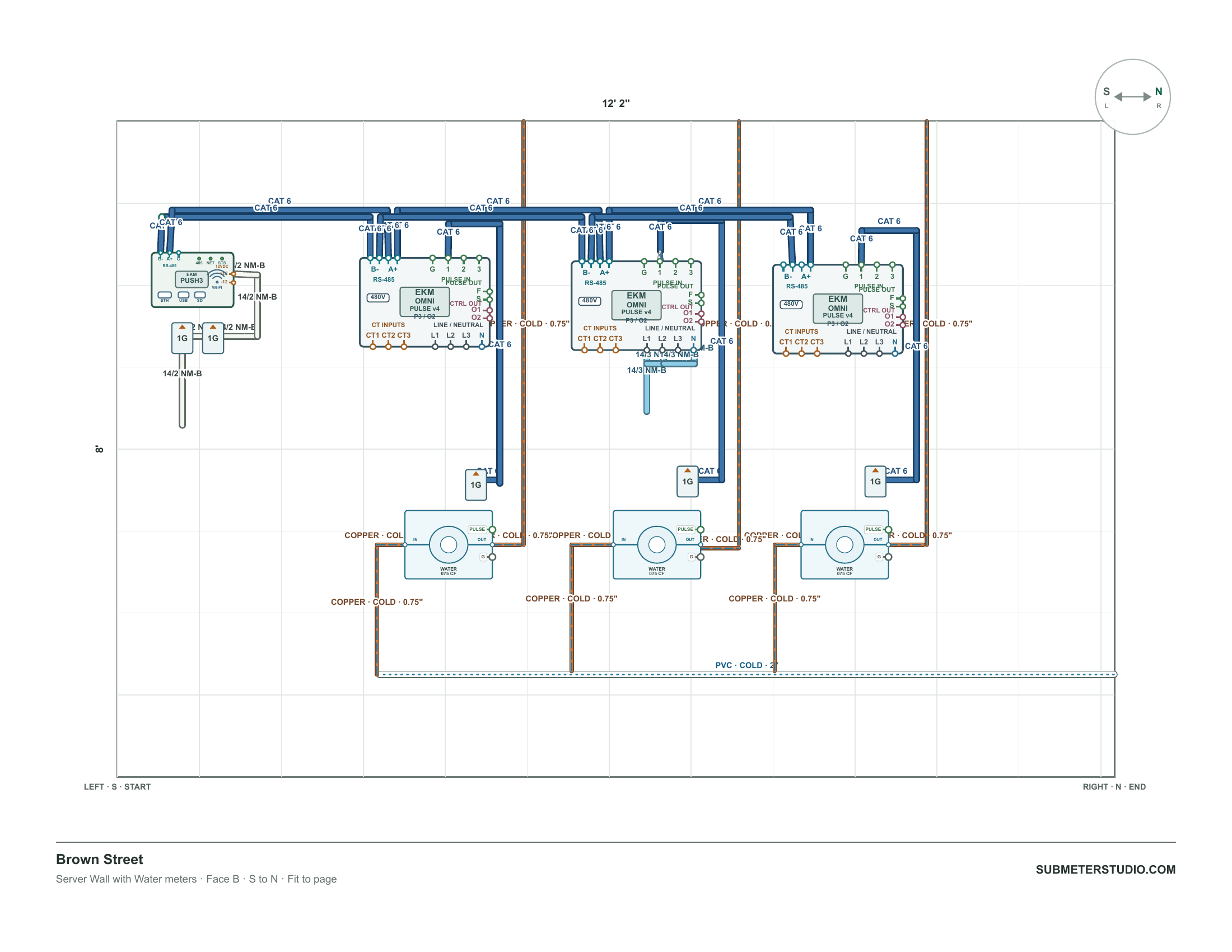

Actual Studio exportServer Wall with water meters · 8.5 x 11 in · landscape
Architectural scalesFit, 1/8, 1/4, 3/8, and 1/2 in = 1 ft
Sheet-ready outputDimensions, margins, title block, plan, and wall views
03 · EKM + COMPONENT LIBRARY
Start with EKM. Build the whole property.
The Metering collection leads with EKM meters and the Push3 gateway. Plumbing adds color-accurate PVC, copper, PEX, black iron, and yellow polyethylene pipe systems.
16EKM products5Omnimeters8Water meters2 + 1Gas meters + Push3
EKM Metering
EKM Push3 Gateway
RS-485 gateway with Wi-Fi, Ethernet, USB, microSD, and 12VDC connection planning.
4.21 x 2.01 x 3.54 in · 12 x 8 in wall diagram EKM Metering
EKM Omnimeter Pulse UL v4
UL/cUL 120-480V meter with complete CT, line, neutral, pulse, control, and RS-485 terminal planning.
3.94 x 2.62 in plan · 19 x 13 in wall diagram EKM Metering
EKM Omnimeter HV v4
High-voltage 120-600V metering with three pulse inputs, two pulse outputs, and two control outputs.
3.94 x 2.62 in plan · 19 x 13 in wall diagram EKM Metering
EKM Omnimeter II UL v3
UL/cUL 120-240V meter with CT, line, neutral, RS-485, and one dry-contact pulse output.
3.94 x 2.62 in plan · 19 x 13 in wall diagram EKM Metering
EKM Omnimeter I v3
120-480V meter with CT, line, neutral, RS-485, and one dry-contact pulse output.
3.94 x 2.62 in plan · 19 x 13 in wall diagram EKM Metering
EKM SPWM-075-CF
3/4 in horizontal cold-water meter with inlet, outlet, pulse, and ground connection points.
11.61 L x 3.31 W x 4.57 H in EKM Metering
EKM HOT-SPWM-075-CF
3/4 in horizontal hot-water pulse meter with separate pulse and ground terminals.
11.61 L x 3.31 W x 4.57 H in EKM Metering
EKM HOT-SPWM-075-HD
Heavy-duty 3/4 in hot-water meter with pipe and pulse wiring connection points.
12.20 L x 3.23 W x 5.12 H in EKM Metering
EKM SPWM-075-HD-NSF
NSF 61 heavy-duty 3/4 in cold-water meter with horizontal service routing.
12.80 L x 3.94 W x 5.12 H in EKM Metering
EKM VSPWM-075-HD-NSF
Vertical NSF 61 heavy-duty 3/4 in cold-water meter with pulse and ground outputs.
5.79 L x 3.94 W x 9.37 H in EKM Metering
EKM SPWM-100-NSF
NSF 61 1 in cold-water pulse meter for larger horizontal service layouts.
15.75 L x 3.94 W x 5.12 H in EKM Metering
EKM SPWM-150-NSF
NSF 61 1.5 in cold-water pulse meter with scaled inlet and outlet connections.
17.83 L x 4.80 W x 6.38 H in EKM Metering
EKM SPWM-200-NSF
NSF 61 2 in cold-water pulse meter for high-flow service and submeter layouts.
18.07 L x 4.80 W x 6.38 H in EKM Metering
EKM APGM-075-CF
3/4 in aluminum cold-temperature gas meter with top inlet, outlet, pulse, and ground terminals.
8.23 W x 6.69 D x 8.74 H in EKM Metering
EKM PGM-150-CF
1.5 in steel pulse-output gas meter with top service connections and pulse wiring terminals.
12.44 W x 8.50 D x 12.89 H in Built for field planning
Open SubmeterStudio
